News center

The current position | home page > News and information > Case study

Gasoline engine seal solution


Shanghai suo tuo long-term supply of asbestos-free gasket, high-quality imported asbestos-free gasket, copy plate, rolling plate and other fiber rubber gasket.Can beOEMSupporting the processing of general gasoline engine gasket, general engine gasket seal.

Interfaith gasket provides high-performance gasket materials designed specifically to meet the stringent requirements of today's gasoline engines.These materials have excellent long - term durable sealing properties.Can achieve, even exceed the engine manufacturers to provide users with durable use guarantee.Interfaith gaskets all products are manufactured according to the quality standard QS-9000 sealing materials.These high performance materials provide a new low cost and high efficiency solution for sealing applications of gasoline engines.

In the OEM matching gasoline engine market, the correct choice gasket material selects you to have the full understanding to the material design performance and the application component structure.The most important thing is that the performance of the material must meet or even exceed the application requirements of the engine.When selecting and recommending material products for users, interfaith gasket company not only makes comprehensive and detailed analysis of the selected parts, but also carries out simulation tests on the selected materials, so as to ensure the reliability of the application of material products.



Material selection recommendation

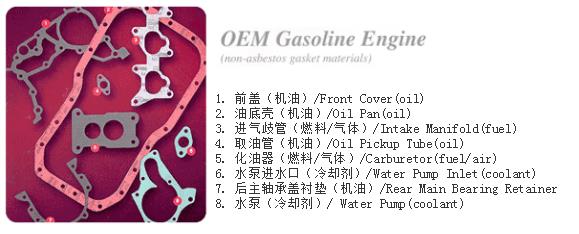

OEM gasoline engine
The high value
universal
economical
The oil application :
Oil sump, rear main gear seat, front shaft cover, take tubing
MP-15 PF-6S TS-9013
The fuel used :
Intake manifold, carburetor
CMP-4000 MP-2N N-8092
The air application :
Intake manifold, carburetor
PF-4N MP-2N N-8092
Coolant application :
Water pump, water pump inlet
CMP-4000 PF-4N N-8092
Technical indicators
Gasket materials The density of(g/cc) Bonding agent Maximum intermittent temperature(℃) Truncated media are recommended Minimum tensile strength AMD(MPa) Minimum flange seal pressure oil @ 4 Bar(MPa)
MP-15 1.54 Neoprene 205 Oil, air, coolant, fuel 10.34 3.4
CMP-4000 1.60 NBR 350 Oil, air, coolant, fuel 23.00 4.8
PF-4N 1.44 NBR 290 Oil, air, coolant, fuel 8.97 10.3
PF-6S 1.28 SBR 230 Oil, air, coolant, fuel 8.28 20.7
MP-2N 1.35 NBR 205 Oil, air, coolant, fuel 8.28 6.9
TS-9013 1.36 SBR 290 Oil, air, coolant, fuel 8.28 10.3
N-8092 1.20 NBR 180 Oil, air, coolant, fuel 11.03 8.6
